IKO Plasdrain

IKO Plasdrain

The IKO Plasdrain drainage composite comprises the filter layer, the drainage layer, and the separation and protection layer as one integrated unit and is installed immediately above the protection layer on podium deck projects.

Offering a modern alternative to traditional drainage methods, IKO Plasdrain drainage mats are lightweight, easy to install and provide long lasting performance, even in the most demanding environments.

IKO Plasdrain products also provide the necessary compressive strength and the correct drainage properties to help increase the longevity and performance of podium and plinth installations.

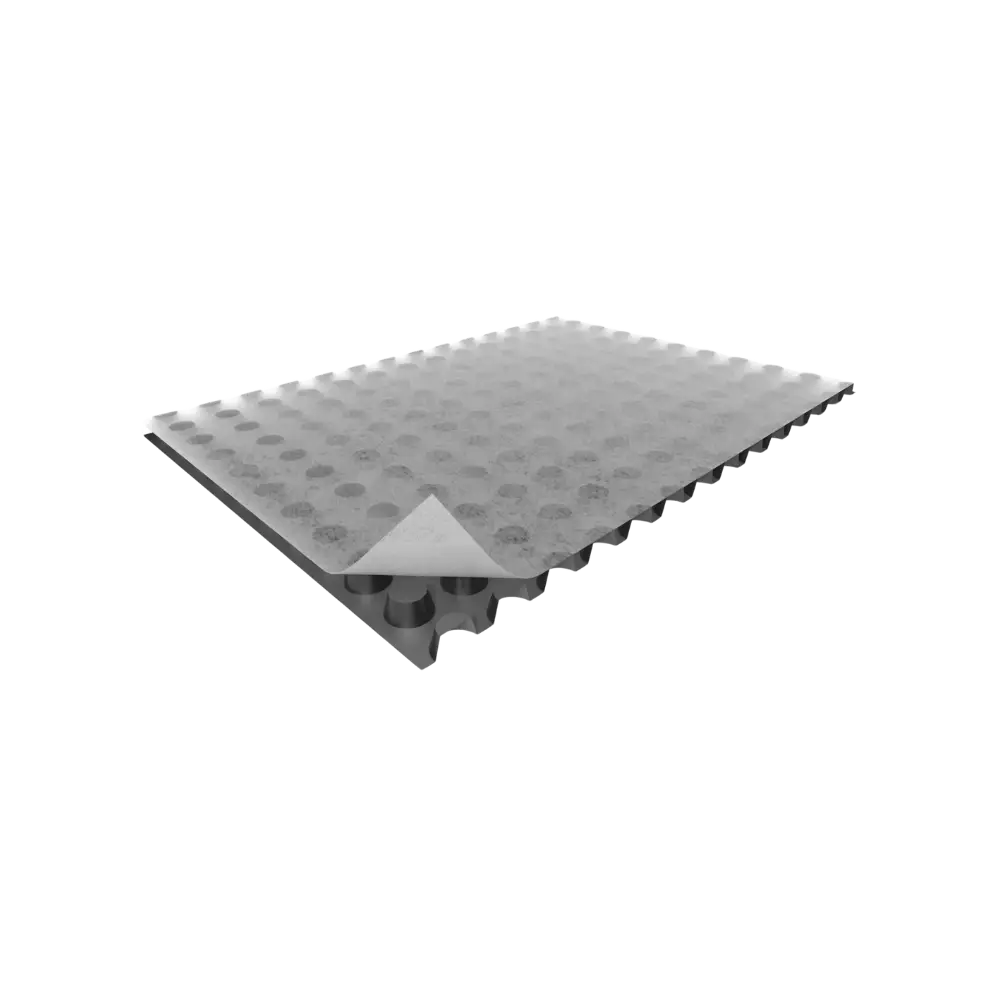

This product is manufactured from a three dimensional polymer core with a geotextile filter fabric bonded to one side, creating a highly effective drainage void.

The geotextile filter fabric prevents penetration of the drain by unwanted sand/soils which can cause blockages. The impermeable core prevents water from reaching the structure being protected.

Key benefits to your project

  • Thinner when compared to mineral drainage systems.
  • High flow capacity – exhibits higher flow rates than that of mineral drainage systems without clogging from small fines.
  • Increased performance – contributes to IKO Hyload tanking performance, reducing the effects of hydrostatic pressure acting upon the structure.
  • Cost-effective – when compared to imported mineral drainage material to site.
  • Ease of installation – less labour intensive, the product exhibits a high strength to weight ratio.

Product information

Brand: IKO Plasdrain
Product colour: Black
SKU: 79600006

Key performance criteria

Certification: CE


Length (mm): 50000
Thickness: 6 to 25mm
Weight (kg): 4 to 8
Width (mm): 915 to 1100
