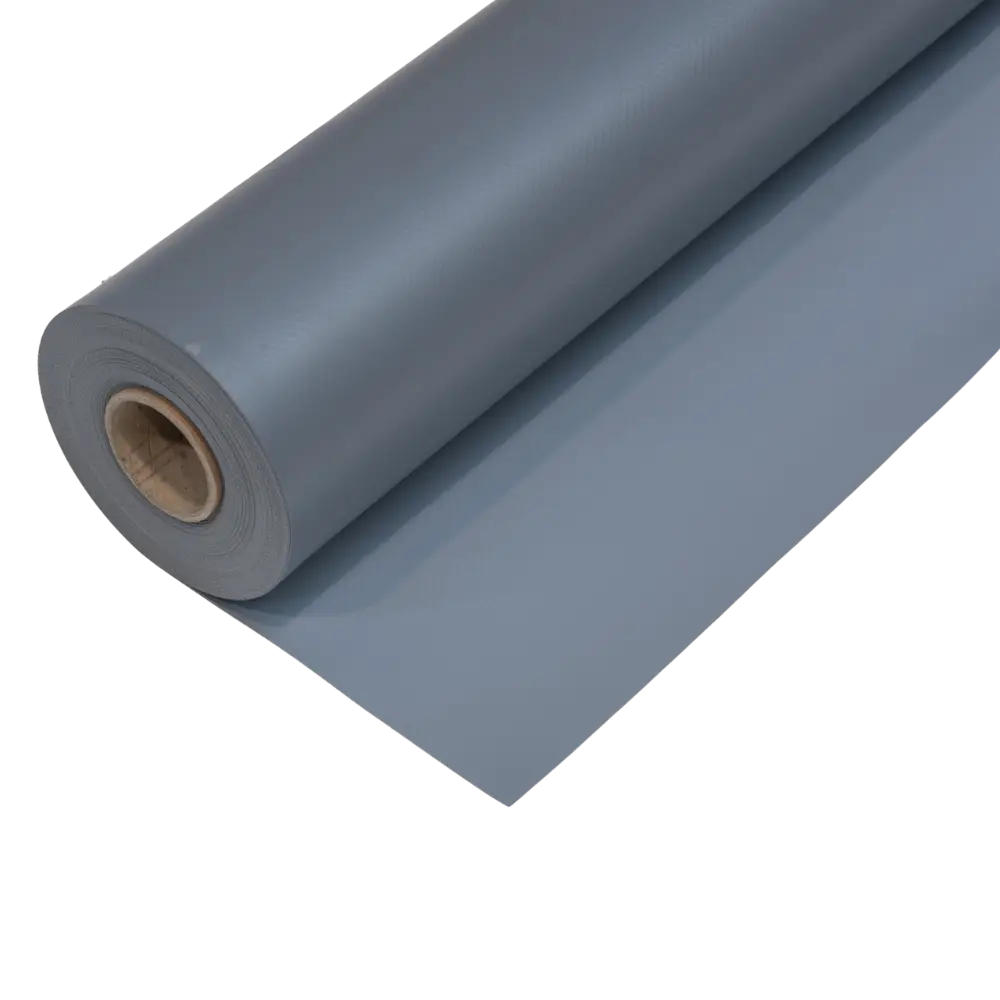

Image of a Slate Grey coloured IKO Armourplan SM roll
IKO Armourplan SM Membrane

IKO Armourplan SM Membrane

IKO Armourplan SM is a polyester scrim-reinforced membrane for mechanically fastened single ply roofing systems on both flat and sloping roofs. It is suitable for both new build and refurbishment installations.

Overlaps are securely hot air welded and the membrane is mechanically fastened in the overlaps using IKOfix Stress Plates and IKOfix Screws into the deck.

IKO Armourplan SM membranes can also be used for ballasted systems or in adhered systems when bonded using IKO Armourplan Contact Adhesive or IKOpro Sprayfast PCA Adhesive.

IKO Armourplan SM is also used as the upstand detailing membrane on all SM or IKO Armourplan SG systems.

Key benefits to your project

  • FM insured and approved.
  • BBA certified (Certificate No. 05/4287).
  • Available in 1.2mm, 1.5mm, 1.8mm, and 2mm thicknesses.
  • Available in 1.06m, 1.6m, and 2.12m widths.
  • Available in Mid Grey and Slate Grey colours.
  • Mechanical properties and product performance.
  • UV resistance and a long service life.
  • Efficient and safe installation.
  • Secure seam welding quality.

Product information

Brand: IKO Armourplan
Material: PVC-P
Product colour: Mid Grey, Slate Grey
Product type: Single Ply – Commercial, Single Ply – PVC
UK manufacturing: Yes
SKU: 42010612 / 42010615 / 42010618 / 42010620 / 43010612 / 43010615 / 42016012 / 42016015 / 42016018 / 42016020 / 43016012 / 43016015 / 42021212 / 42021215 / 42021218 / 42021220 / 43021212 / 43021215

Key performance criteria

Accreditation: BES 6001, ISO 9001, ISO 14001
By project type: New Build, Refurbishment
Certification: BBA, CE
Installation method: Adhered, Loose Laid, Mechanically Fixed
Profession: Export Customers, Installing Contractors, Specifiers & Designers
Usage: Single Ply System

Dimensions

Length (mm): 20000
Thickness: 1.2mm, 1.5mm, 1.8mm, 2mm
Width (mm): 1060, 1600, 2120
