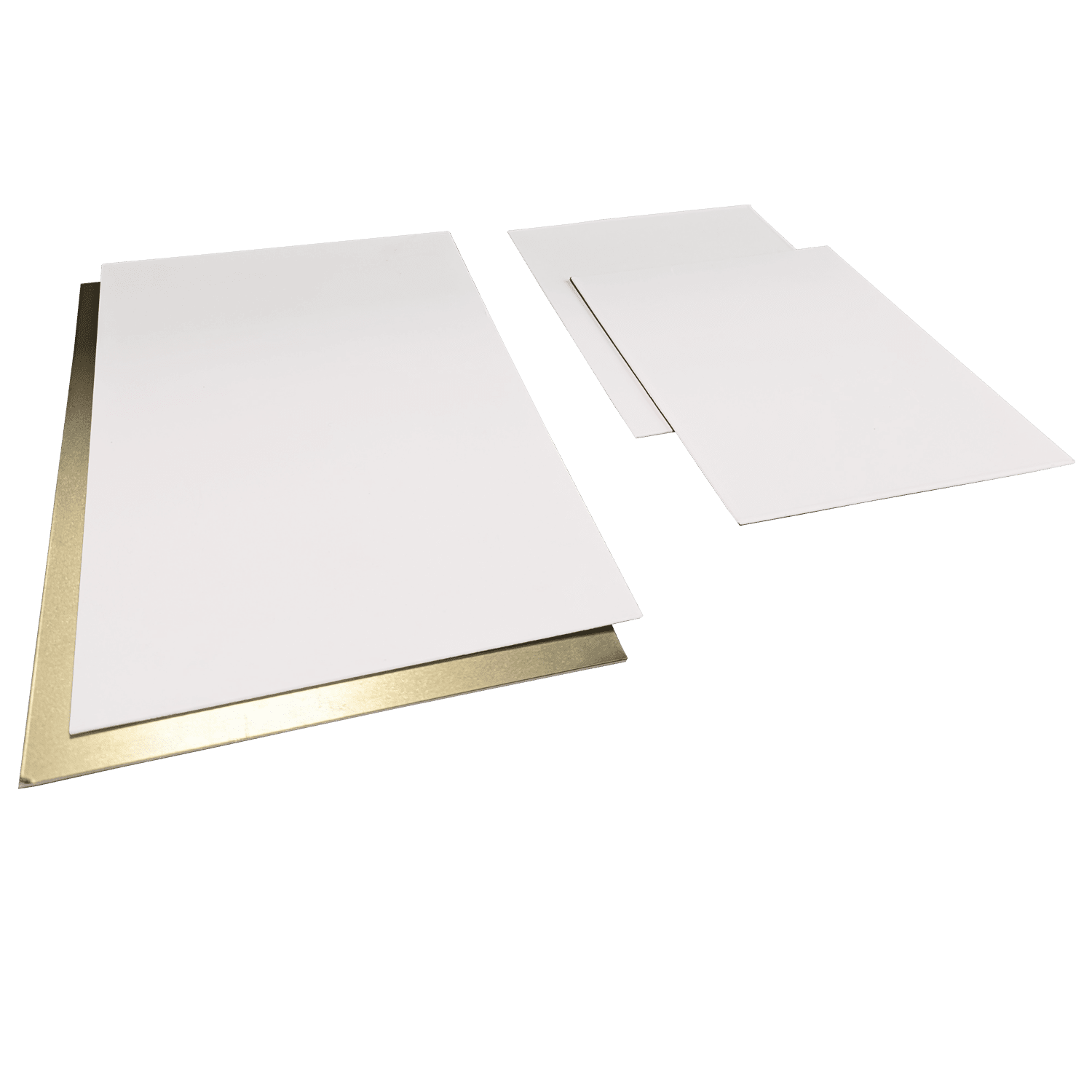

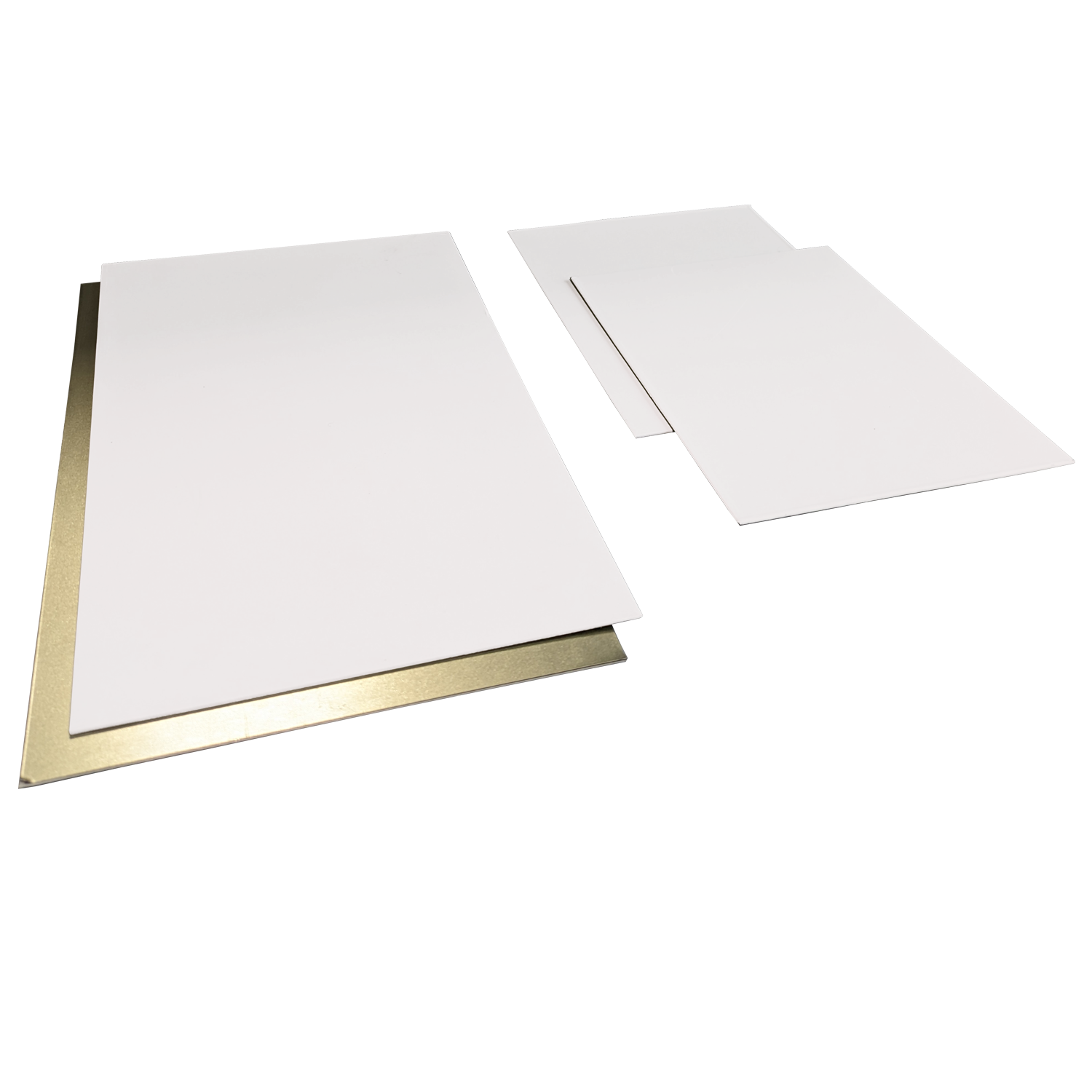

Photo of IKO Spectraclad Membrane Coated Metal strips
IKO Spectraclad Membrane Coated Metal

IKO Spectraclad Membrane Coated Metal

IKO Spectraclad Membrane Coated Metal is a galvanised steel substrate that is factory-laminated with IKO Spectraplan TPE membrane.

Available in sheets, IKO Spectraclad Membrane Coated Metal can be fabricated off-site for perimeter details like drip edges and upstands.

Its TPE membrane surface allows the heat welding of IKO Spectraplan to pre-formed trims, ensuring fully sealed and watertight perimeters.

Alternatively, IKO offers a wide range of pre-formed drip trims and angled profiles for on-site convenience.

Key benefits to your project

  • Free from plasticisers, halogens, heavy metals, and softeners.
  • High solar reflectivity reducing the urban heat island effect.
  • Lower carbon footprint as the only UK manufactured TPE waterproofing membrane.
  • Wide welding window of 200°C to 600°C ensuring reliable overlaps.
  • Compatible with existing bitumen membranes without a separation layer.
  • High UV resistance and a long service life.
  • Homogeneous compound offering excellent impact resistance, tensile strength, and elasticity.
  • Installed by IKO Approved Contractors.

Product information

Material: Steel
Product colour: White
Product type: Accessory
SKU: 30447440 (Membrane Coated Metal) / 57711050 (Pre-formed Drip Flashing – 50mm Face Depth) / 57711100 (Pre-formed Drip Flashing – 100mm Face Depth)

Key performance criteria

Accreditation: BES 6001, ISO 9001, ISO 14001, ISO 45001
Installation method: Hot Air Welded
Profession: Installing Contractors, Specifiers & Designers
Usage: Accessory

Dimensions

Length (mm): 2000
Thickness: 1.8mm
Width (mm): 1000
Download all product documents
Contact us for technical advice
