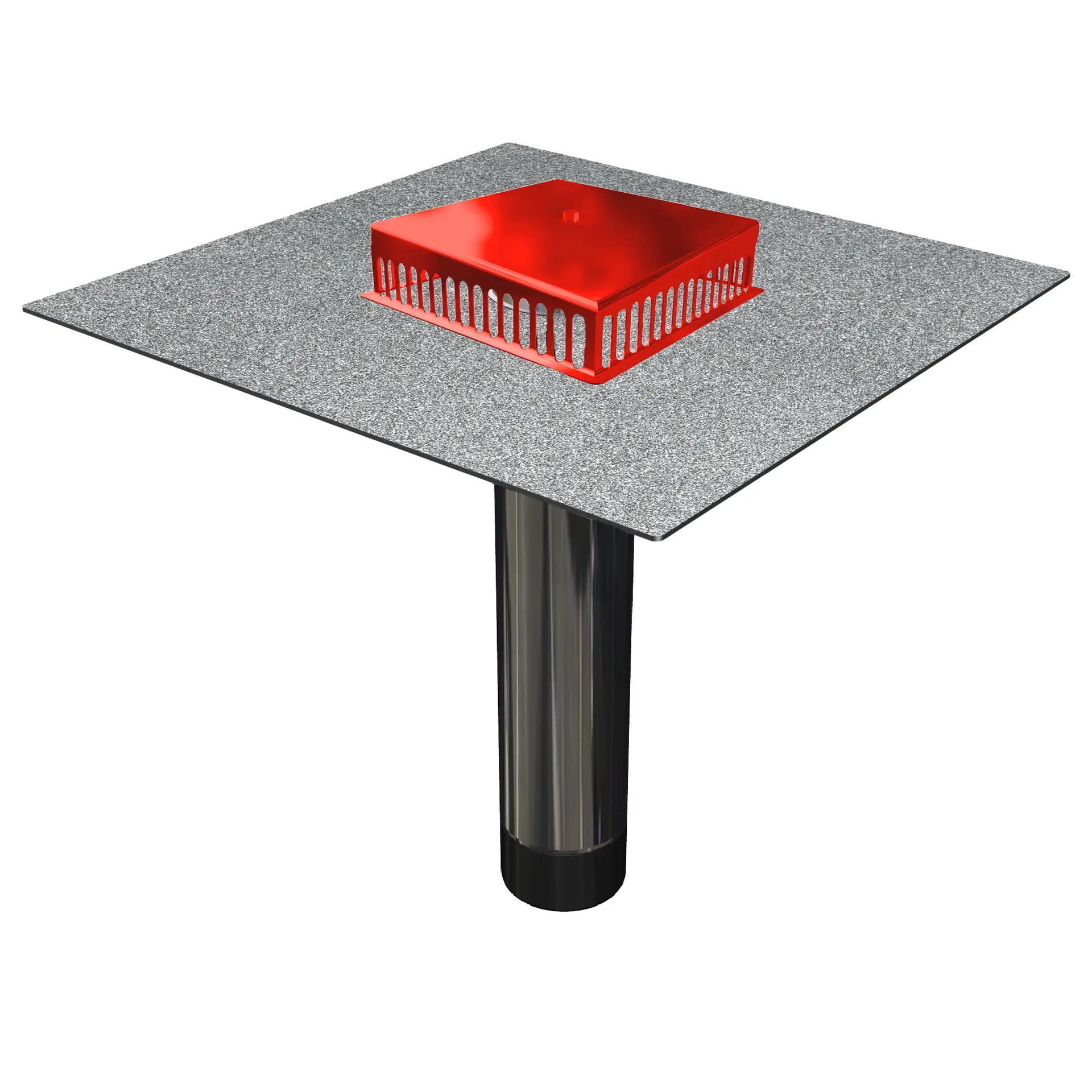

IKO Refurbishment Outlet Rainwater Kits are used for the refurbishment of flat roofing, balcony, and terrace applications. They are suitable for use within IKO reinforced bituminous membrane systems and IKO flexia cold applied liquid waterproofing systems.
IKO Refurbishment Outlet Rainwater Kits are manufactured from robust stainless steel. There are two kit types available depending on the IKO system guarantee offer – IKO Standard Kits and IKO ULTRA Kits.
Both kit types are available with a torch-on SBS bitumen membrane flange measuring 500mm x 500mm. This provides a large area to bond to and enables a very quick and simple installation. The flange is to be used in conjunction with IKO ULTRA bituminous waterproofing systems.
The IKO Refurbishment Outlet Rainwater Kits are also available without the bitumen flange to reduce lap build up when installed alongside IKO flexia cold applied liquid waterproofing systems.
IKO Refurbishment Outlet Rainwater Kits must be installed by IKO Approved or Registered Installers. All work must be undertaken in accordance with the issued IKO specification document, or other guidance documents where applicable.
IKO Standard Kits
IKO Standard Kits are used within IKO material and workmanship guarantee offers. They are connected into the existing drainage pipe work, with the seal being created using a ribbed seal and 5mm O-ring. This kit has a tamperproof standard universal leaf guard to prevent debris entering the outlet.
IKO ULTRA Kits
IKO ULTRA Kits are used within IKO material, workmanship, and design guarantee offers. They are connected into the existing drainage pipe work using a mechanical seal and 5mm O-ring. The mechanical seal expands to create a robust seal to the existing pipe work. This kit has a tamperproof high performance leaf guard which provides 50% more flow rate than the standard leaf guard.
