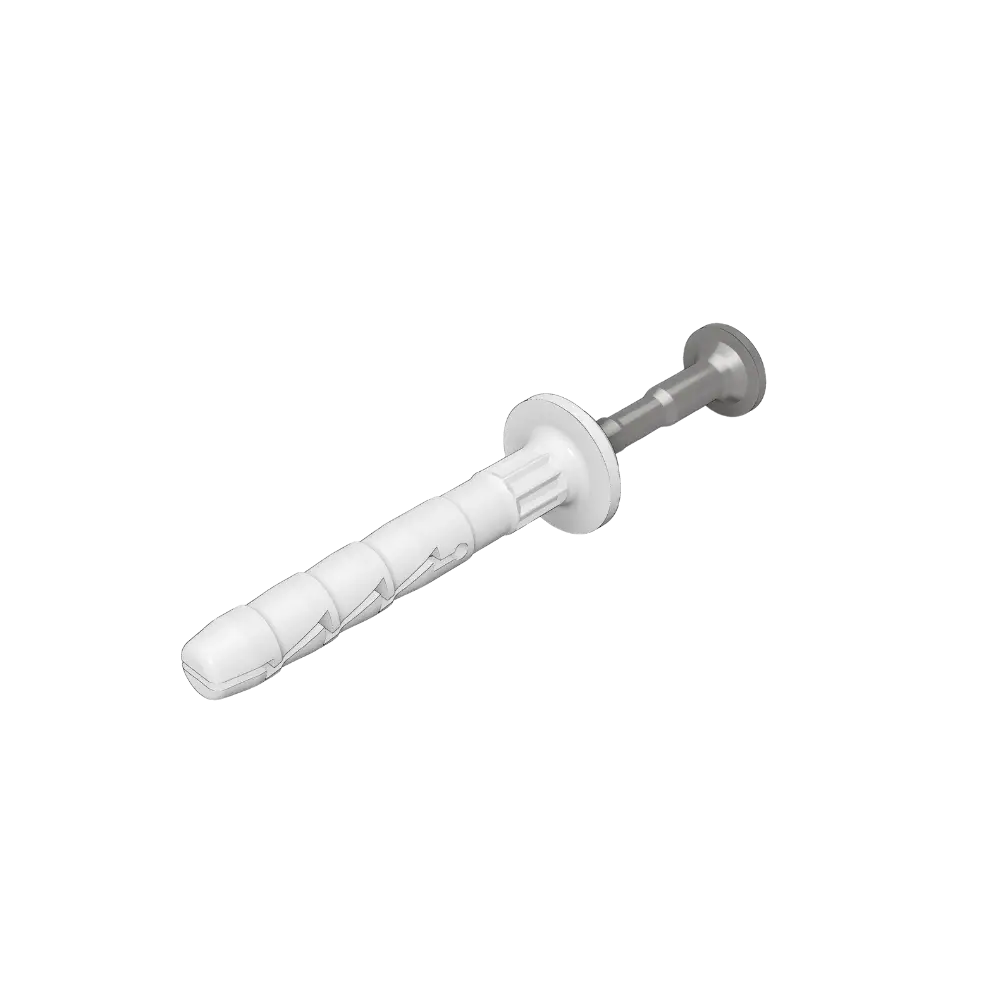

For use with IKO Hyload DPC Fixing Strips. IKO Hyload DPC Fixing Pins for Masonry are used for surface fixing IKO Hyload DPC systems to any solid internal substrates such as brick, stone, and concrete.
Drill a clearance hole 6mm diameter by 45mm deep into substrate and fully insert the 40mm long fixing plug.
The central 3.8mm diameter pin is then hammered into place so that the barbed portion of the fixing plug splays out into the substrate, giving a secure grip and high pull-out resistance.
