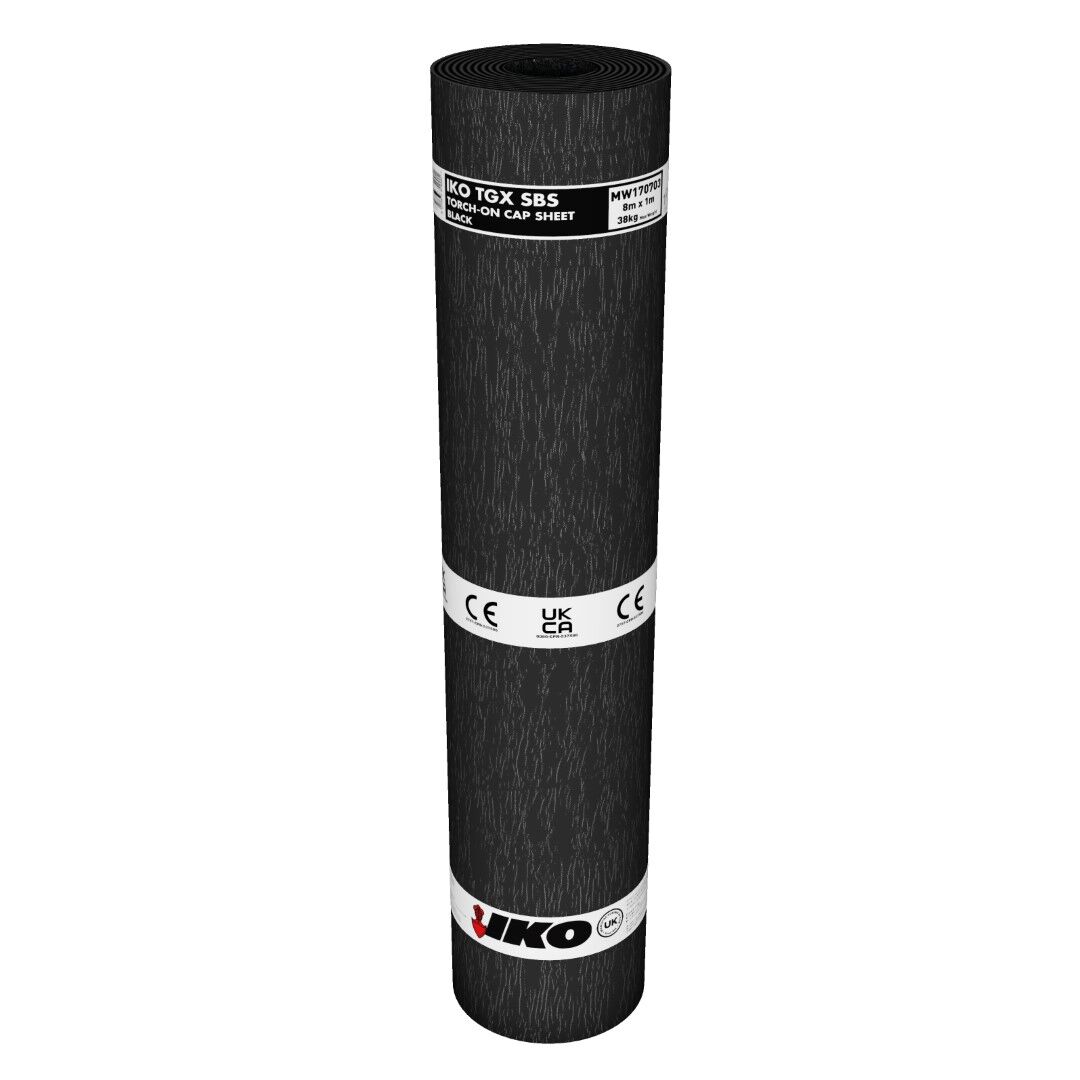

Image of an IKO TGX Torch-On SBS Capsheet roll
IKO TGX Torch-On SBS Capsheet

IKO TGX Torch-On SBS Capsheet

The IKO TGX® Torch-On SBS Capsheet is fully-bonded, torch-applied, and made from SBS-modified bitumen. It is also reinforced with polyester, providing dimensional stability and durability.

It features an upper surface finish comprising mineral granules in three different colours (green, black, and brown), and a thermofusible film on the underside that melts during the torching process to facilitate a secure bond of the membrane.

Suitable for both new build and refurbishment projects involving domestic and commercial flat roofing applications, the IKO TGX® Torch-On SBS Capsheet, combined with the IKO TGX® Torch-On SBS Underlay, can be incorporated within a new torch-applied built-up roofing system or used to overlay existing bitumen or asphalt roofing.

Available 8m x 1m rolls – the lightest of the SBS range – this capsheet also incorporates a 75mm sacrificial film selvedge for bonding side laps and come with a 10-year guarantee*, as standard. It is also CE and UKCA-accredited.

*When installed as part of a built-up roof system, and conditions are maintained as per IKO literature, relevant Codes of Practice and UK Building Regulations, the product has a 10-year IKO material guarantee.

Key benefits to your project

  • Durable – as part of flat, warm, cold, uninsulated, and inverted roof build-ups.
  • Easy to apply – the thermofusible film on the underside melts during the torching process.
  • Strong and robust base material – polyester-reinforced carrier.
  • Flexibility – the SBS-modified bitumen retains flexibility properties in a wide range of temperatures.
  • Attractive finish – choose between three different mineral granule surface finish colours.
  • Peace of mind performance – all IKO TGX® Torch-On SBS Capsheets come with a 10-year guarantee*.

Product information

Brand: IKO TGX
Material: Bituminous
Product colour: Black, Brown, Green
Product finish: Mineral
Product type: Bituminous Membrane – Commercial
UK manufacturing: Yes
SKU: MW170702 (Green) / MW170703 (Black) / MW170704 (Brown)

Key performance criteria

By project type: New Build, Refurbishment
Certification: CE
IKO guarantee: 10 Year
Installation method: Torch-On
Membrane carrier/base: Polyester
Membrane modifier: SBS
Membrane type: Capsheet
Profession: Installing Contractors, Merchants & Resellers
Roof build ups: Cold Roof System, Flat Roof System, Inverted Roof System, Torch-On System, Warm Roof System

Dimensions

Length (mm): 8000
Width (mm): 1000
