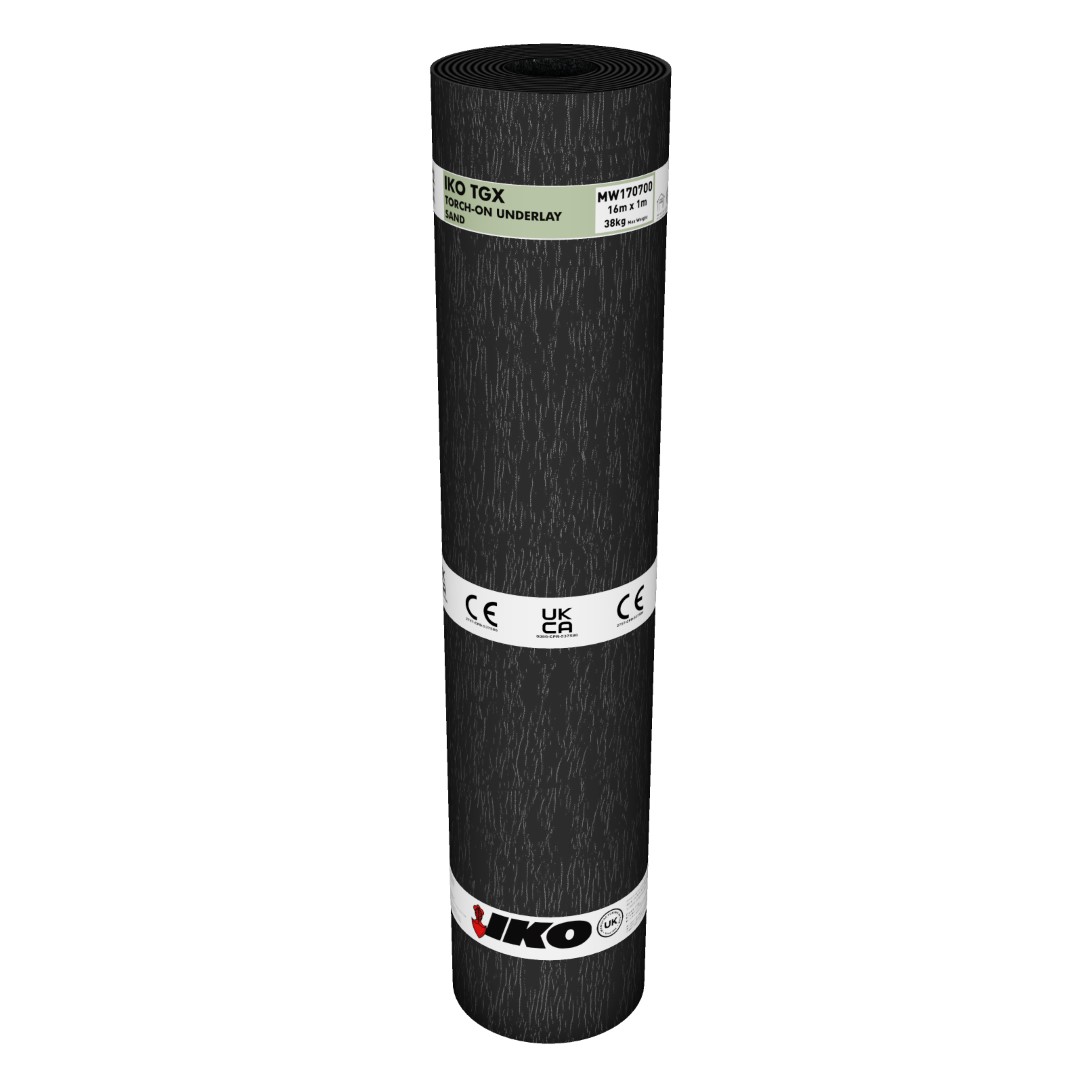

IKO TGX Torch-On SBS Underlay

IKO TGX Torch-On SBS Underlay

The IKO TGX Torch-On SBS Underlay is a fully bonded, torch-applied, glass fibre reinforced, and SBS modified bitumen underlay. It has an upper surface finish of sand and a thermo-fusible film on the underside.

IKO TGX Torch-On SBS Underlay, combined with the IKO TGX Torch-On SBS Capsheet, can be used to provide built-up flat roofing solutions in both domestic and commercial situations.

When installed as a complete built-up roof system, and conditions are maintained as per IKO literature, relevant Codes of Practice and UK Building Regulations, the TGX system has a 10-year IKO material guarantee.

For Safe2Torch guidance, please visit our dedicated information hub.

Key benefits to your project

  • IKO TGX Torch-On SBS Capsheets are also available.
  • Torch-applied – can be applied all year round as less affected by weather/temperature variations.
  • Can be considered for use within a torch-applied system overlaying existing bitumen roofing.
  • SBS modified bitumen retains excellent flexibility under ambient temperature fluctuations for enhanced system longevity.

Product information

Brand: IKO TGX
Material: Bituminous
Product finish: Sand
Product type: Bituminous Membrane – Commercial
UK manufacturing: Yes
SKU: MW170700

Key performance criteria

By project type: Refurbishment
IKO guarantee: 10 Year
Installation method: Torch-On
Membrane carrier/base: Glass
Profession: Installing Contractors, Merchants & Resellers, Roofers
Roof build ups: Cold Roof System
Sector: Community & Amenity, Domestic, Private Housing, Social Housing

Dimensions

Length (mm): 16000
Width (mm): 1000
