IKO Armourplan Refurbishment Rainwater Outlets

IKO Armourplan Refurbishment Rainwater Outlets

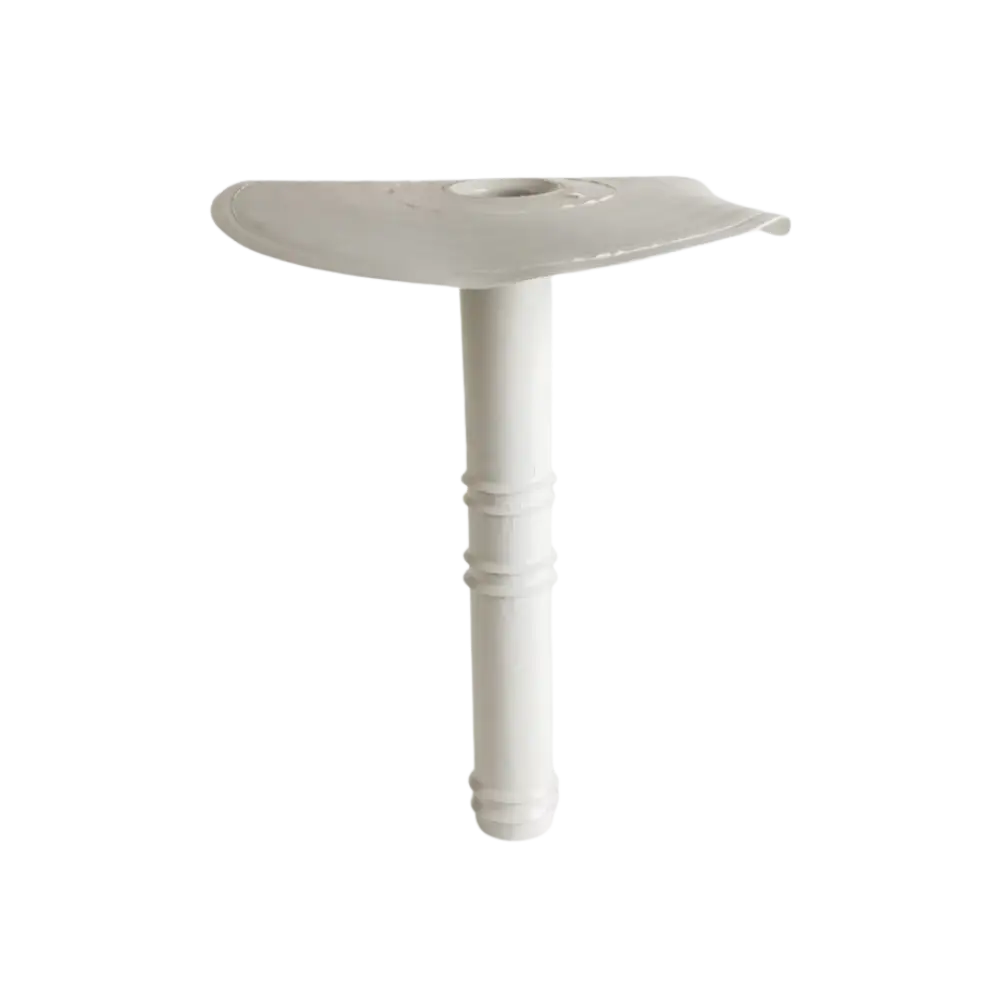

IKO Armourplan Refurbishment Rainwater Outlets are preformed vertical drop outlets manufactured from injection moulded flexible PVC. They are available in a wide range of diameters.

IKO Armourplan Refurbishment Rainwater Outlets can be pushed into the existing rainwater outlets or downpipe in refurbishment applications. This is where the fins can provide a watertight seal to the inside of the existing outlet.

They also provide a secure hot air welded solution to rooftop drainage, when used in conjunction with IKO Armourplan membranes.

Key benefits to your project

  • Secure hot air welded interface.
  • Efficient and safe installation.
  • Excellent mechanical properties and product performance.
  • Good UV resistance and durability.

Product information

Brand: IKO Armourplan
Product colour: Light Grey

Key performance criteria

Dimensions

Base plate diameter (mm): 320, 330, 385, 390
Internal diameter (mm): 45, 58, 72, 80, 95, 102, 128
Spigot length (mm): 400
