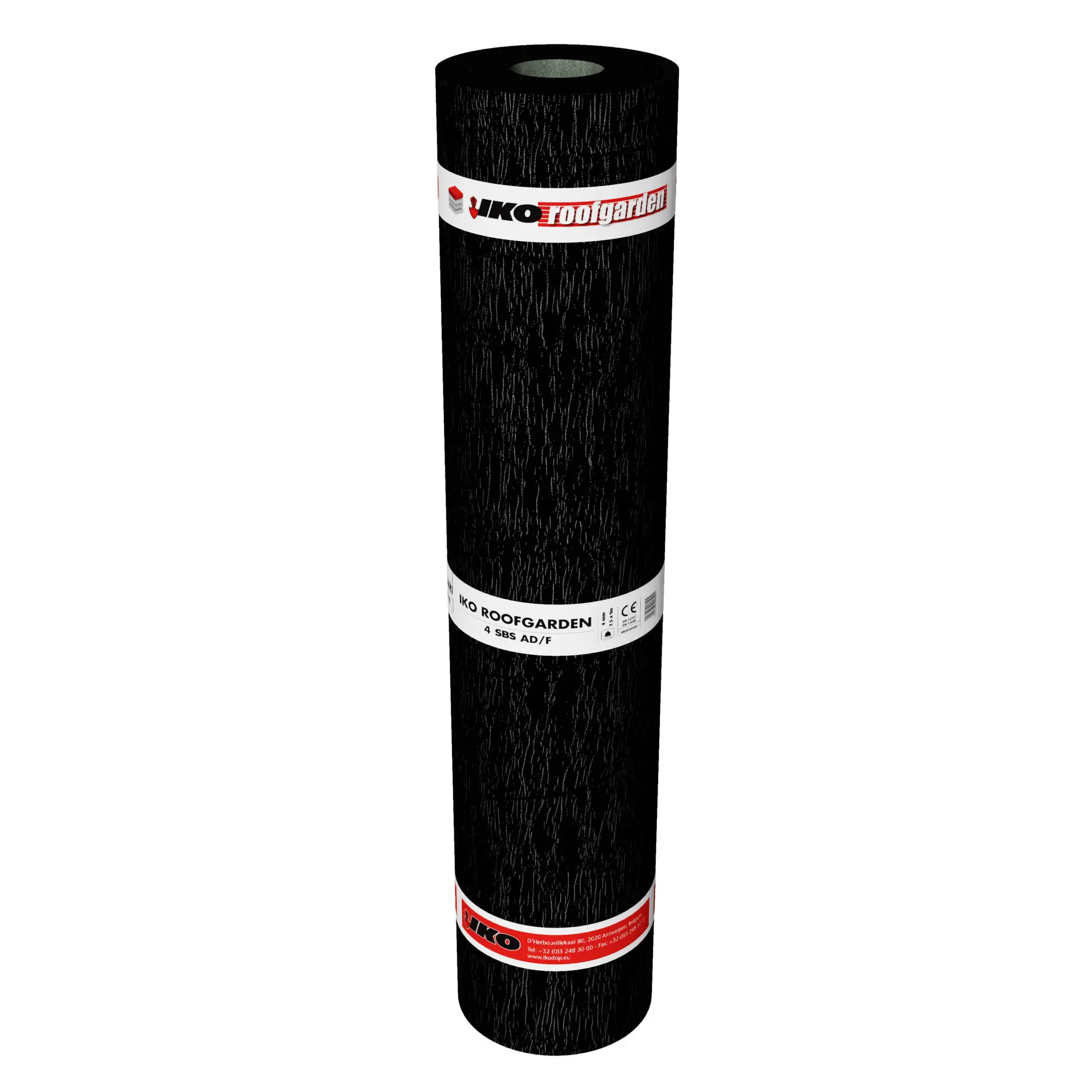

Mock-up image of an IKO Roofgarden 4 SBS AD/F Capsheet roll
IKO Roofgarden 4 SBS AD/F Capsheet

IKO Roofgarden 4 SBS AD/F Capsheet

Our IKO Roofgarden 4 SBS AD/F Capsheet is a waterproofing membrane composed of elastomer (SBS) bitumen with fire-retardant properties, root resistant additives, and a polyester/glass combination inlay.

The upper surface is finished with dark grey crushed slate and the lower surface is protected by a thermofusible film. This top layer can be applied in a multi-layer system.

The IKO Roofgarden 4 SBS AD/F Capsheet is to be installed by being fully torched-on or loosely laid and ballasted.

For Safe2Torch guidance, please visit our dedicated information hub.

Key benefits to your project

  • Tested root resistance (EN 13948).
  • Purpose-made roof garden waterproofing capsheet.
  • Specifically formulated anti-root coating.
  • Flexible down to minus 20°C.
  • Excellent adhesion to the substrate.

Product information

Brand: IKO Roofgarden
Material: Bituminous
Product colour: Dark Grey
Product type: Bituminous Membrane – Commercial
SKU: 01520321

Key performance criteria

Accreditation: ISO 9001, ISO 14001
By project type: New Build, Refurbishment
Installation method: Loose Laid, Torch-On
Membrane carrier/base: Glass, Polyester
Membrane modifier: SBS
Profession: Export Customers, Installing Contractors, Specifiers & Designers
Sector: Community & Amenity, Education, Health, Hotel & Leisure, Industrial, Mixed Use, Offices, Retail, Social Housing, Utilities


Length (mm): 7500
Width (mm): 1000
