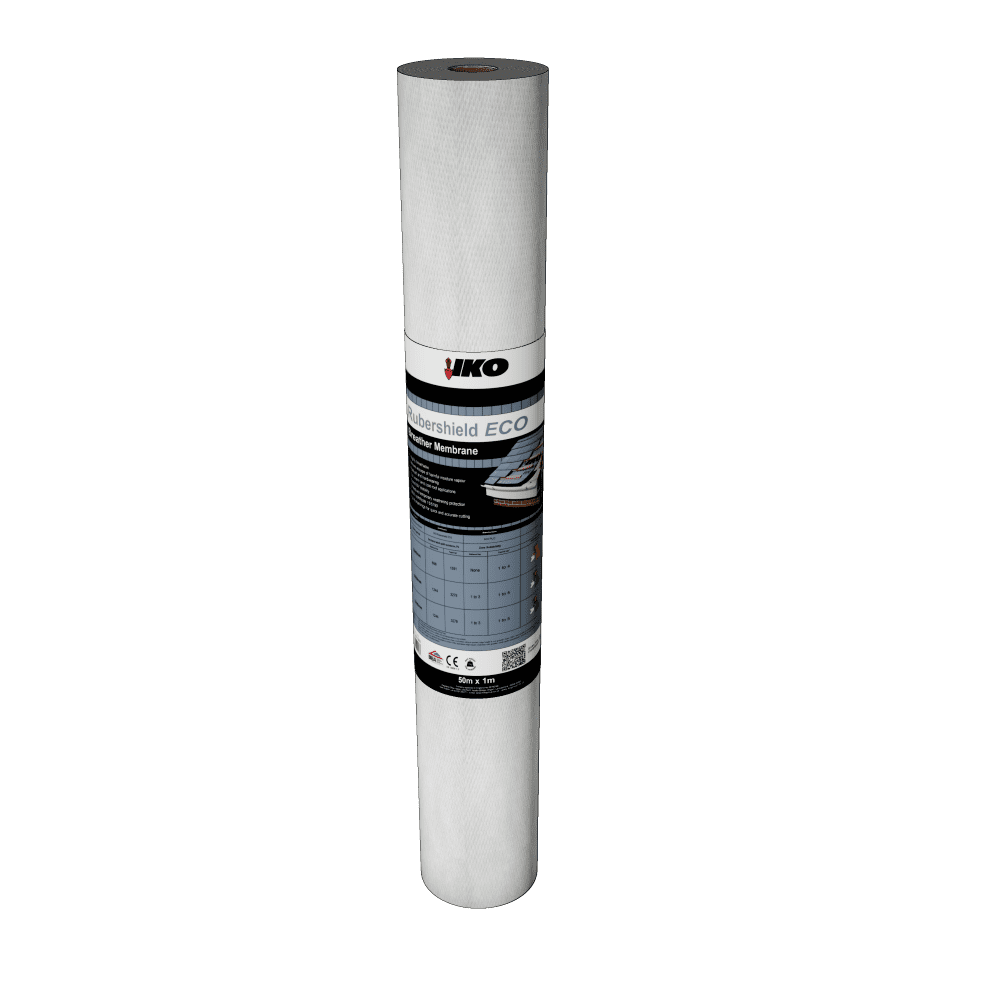

IKO Rubershield Eco

IKO Rubershield Eco

IKO Rubershield Eco is a 100g/m2 Type LR Breather Membrane conforming to the requirements of BS5534:2014 when installed within a ventilated cold pitched roof construction.

It is BBA-approved for use within cold and warm unventilated pitched roof constructions and for use within vertical applications.

IKO Rubershield is a range of BBA-approved (Certificate No. 15/5190) breathable membranes for pitched roofs (IKO Rubershield Eco Extra, Pro and Pro Extra).

Amongst other benefits, each membrane provides a barrier to minimise the wind uplift load and wind driven rain, snow, and dust, as well as transporting any unwanted moisture resulting from ingress through the primary roof coverage into the roof drainage system.

Note: Laps were taped using Jointing Tape, BRE Report 302-776 Issue 5, 19th March 2015; the use of taped products is currently outside the scope of BBA Certificate 15/5190.

Key benefits to your project

  • Breather membrane – breathable; allows the passage of harmful water vapour.
  • Weather resistant – acts as a secondary barrier to liquid water, wind driven snow and debris.
  • Grid markings for quick and accurate cutting.
  • Compliant with BS 5534: 2014.

Product information

Brand: IKO Rubershield
Product colour: Grey
Product finish: Fabric
SKU: 11402000

Key performance criteria

Certification: BBA, CE
Tear resistance (N): Longitudinal 70 Transverse 60
Tensile strength [N(50mm)-1]: Longitudinal 180 Transverse 90
Usage: Breather Membrane, Pitched Roof


Length (mm): 50000
Thickness: 0.35mm
Weight (kg): 5, 7.5
Width (mm): 1000, 1500
